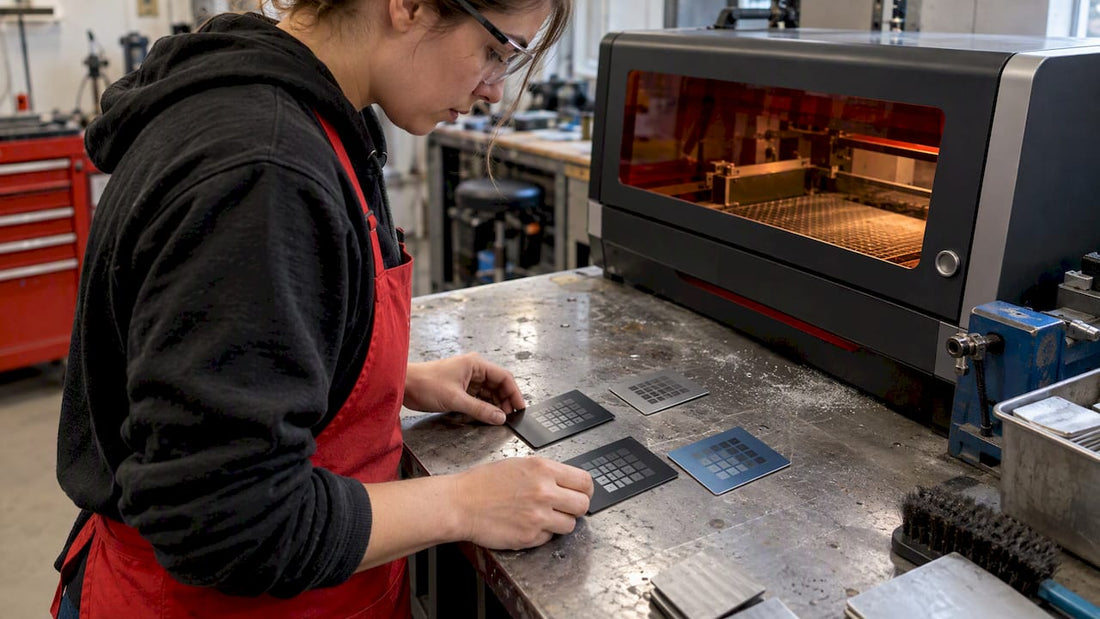

Technician inspecting anodized aluminum test coupons

Repeatable Test Matrix for Laser Engraving Anodized Aluminum

Yes, laser marking and etching of anodized aluminum works, and it produces high-contrast, permanent results when you match the laser type and tune parameters to the specific anodize. Marking modifies or bleaches the dyed oxide layer rather than cutting into bare metal underneath, so properly tuned settings preserve surface durability. Expect to run a small test matrix on scrap from the same material lot before committing to a production run.

TL;DR:

  • Properly tuned laser settings are necessary for high-contrast marks, with fiber lasers preferred for fine detail and repeatability in industrial contexts.
  • Testing on scrap material from the same lot is essential to determine optimal power, speed, and pulse settings due to variable dye chemistry and coating thickness.
  • Marking modifies or bleaches the dye within the anodized layer, while ablation removes the coating to expose bare aluminum, affecting corrosion resistance.
  • Safety precautions include using extraction and PPE, as aluminum dust and fumes pose fire and health risks, especially with unknown coatings.
  • Pre-finished engraved tumblers are available to avoid the setup process, with tested settings ensuring consistent contrast and faster turnaround.
Handmadeohiocrafts
handmadeohiocrafts.com
Choose Finished Engraved Tumblers
HandmadeOhio creates personalized tumblers and gifts in-house, with no minimum orders and nationwide shipping for convenient custom products.
Visit HandmadeOhio

Table of Contents

How a laser interacts with anodized aluminum

The anodized finish on aluminum is a porous oxide layer, usually sealed with dye, sitting on top of the bare metal. A laser beam aimed at that surface mostly affects the dye and the oxide structure rather than the aluminum underneath, which is why marking can produce a visible change without cutting into the part. According to Trotec, the process typically modifies or removes the dyed anodic layer, and that distinction between marking and ablation drives nearly every decision that follows.

  • Marking alters or bleaches the dye within the oxide, usually leaving the protective layer intact.
  • Ablation removes the coating entirely, exposing bare aluminum underneath.
  • Dye chemistry, oxide thickness, and base color each shift the power and speed window needed for good contrast.

A dark anodized part marked with light settings tends to produce a bright, clean mark, while a light-colored anodize calls for different pulse control to darken the surface instead of just bleaching it.

Which laser type should you use: fiber, CO2, or diode

Fiber lasers, including MOPA variants, dominate industrial anodized aluminum marking because they deliver fine beam control and repeatable results for serial numbers and codes. Automator notes that fiber lasers are widely used across industries for exactly this reason: no consumables, strong repeatability, and the beam quality needed for small text and Data Matrix codes.

  • Fiber/MOPA: best for fine detail, black-on-light marking, and consistent industrial serialization.
  • CO2: broadly available and capable of good white or light marks on many anodized colors, though less precise on fine detail.
  • Diode: workable on dyed anodize for lighter-duty jobs but limited when any ablation into bare aluminum is needed.

MOPA fiber control over pulse duration and repetition rate is what makes black marks on lighter anodized finishes achievable, according to Epilog, which also improves contrast consistency from one part to the next. For small shops producing tumblers or promotional items, a standard fiber setup usually covers the job. Industrial serialization leans on MOPA for code readability, while portable or on-site marking tasks often make do with whatever fiber unit is already on hand.

Dialing in settings with a reproducible test matrix

There’s no universal setting for anodized aluminum. Dye chemistry, coating thickness, alloy, focus, spot size, and fill spacing all shift the outcome, which is why Trotec stresses that published settings from another machine or coating are starting points only, never specifications. A short, documented test matrix fixes that problem fast.

  1. Clean the part and secure it flat, then set focus distance precisely.
  2. Run a grid of test marks varying power and speed while holding other settings constant.
  3. Hold the best power and speed combination, then vary frequency or pulse settings and pass count.
  4. Record every cell’s settings next to its result and keep the physical sample.
  5. Verify the winning combination with an abrasion or chemical spot test before scaling to production.

Power and speed work against each other: more power or slower travel deposits more energy, which deepens the mark but risks overdriving into bare metal. Frequency and pulse settings control how that energy is delivered, spot size and focus determine mark sharpness, and DPI or fill spacing controls how solid a filled area looks. Multiple passes at lower power can sometimes beat one aggressive pass for contrast without additional risk.

Pro Tip: Run your verification pass on the exact lot of stock you’ll use for the order, since coating thickness can vary enough between batches to shift the right settings.

Marking versus full engraving: when to remove the anodize

Marking that modifies the dye without removing the oxide generally resists abrasion and chemical exposure better than ablation, because the protective layer stays in place. Ablation strips the coating down to bare aluminum, which can look striking but leaves an unprotected surface that may need sealing afterward.

  • Avoid ablation on outdoor parts, exposed hardware, or anything where corrosion resistance matters.
  • Ablation can be appropriate for decorative finishes or parts that get a protective seal afterward.
  • Validate the choice with an abrasion or salt-fog style spot test, and confirm any barcode or QR code still scans after the simulated wear.

For most nameplates, promotional items, and everyday consumer goods, marking that preserves the anodized layer is the safer default, making alternatives for custom gifts worth exploring.

Safety and material handling for anodized aluminum

Unknown coatings deserve caution rather than assumptions. OSHA notes that aluminum dust and fumes carry fire and exposure risks, and that material composition changes those risks, so treating “anodized aluminum” as automatically safe to process is a mistake. Check the supplier’s SDS before running an unfamiliar coating.

  • Use an enclosed machine or local exhaust extraction with proper filtration for any laser work on coated metal.
  • Wear appropriate PPE and keep the work area free of accumulated dust, which can present a fire risk in sufficient quantity.
  • Keep test coupons and settings on file, and consult OSHA guidance or the material supplier when a coating’s composition isn’t clear.

Combustible aluminum dust and hot-work hazards mean housekeeping and extraction aren’t optional steps, according to OSHA, even on jobs that look low-risk at a glance.

Where this shows up: tumblers, nameplates, electronics, and codes

The right approach shifts with the application. Promotional tumblers often do well with light marking on dark anodize, though some finishes call for a touch of ablation depending on the look you want. Nameplates usually need high-contrast marking with a verification check on any barcode or serial number before shipping. Electronics benefit from non-invasive marking paired with solid extraction, since many electronic housings are anodized specifically for durability.

  • Dark anodized colors typically produce bright, high-contrast marks with modest power.
  • Light anodized finishes often need MOPA-style pulse control to darken rather than bleach.
  • Serialized parts benefit from fixturing and batching so settings stay consistent across a production run, with lot numbers logged for traceability.

If you’re deciding between laser marking and UV printing for a small batch, our comparison guide walks through a quick five-minute test to figure out which fits your job.

Starting points from our own engraving workflow

Our shop uses a documented test-grid approach on every new material lot before committing to a production run, a habit that holds whether we’re marking anodized aluminum or stainless steel. Treat any starting range you find online, including ours, as a baseline to test rather than a final answer: run your own grid, confirm contrast and scan readability, then record the winning settings alongside the material lot. Keep a physical sample with that data attached so you can reproduce or troubleshoot the result later.

Workflow for documenting engraving test results

Common mistakes and quick wins from the bench

Copying someone else’s settings without testing is the fastest way to waste stock. Skipping verification on barcodes or high-wear parts is the second most common failure. A quick win worth trying: a light second pass at lower power can darken a mark further without cutting deeper into the oxide. Consistent testing and documentation are what make results repeatable.

— Aaron

Order finished laser-engraved tumblers instead

If dialing in settings isn’t something you want to spend an afternoon on, we produce engraved tumblers in-house and ship them nationwide with no minimum order. Our White Rainbow 40oz Laser Engravable Tumbler and White & Gold Laser Engraved 40oz Tumbler both come from stock we’ve already tested for consistent contrast.

White Rainbow 40oz Laser Engravable Tumbler

  • Ordering a finished piece skips the test-matrix step entirely since our settings are already dialed in for each blank.
  • Local production means faster turnaround than sourcing blanks and equipment separately.
  • If you’d rather start from a blank laser-engravable tumbler and run your own settings, that option is available too.

For a sense of typical costs, our tumbler engraving pricing breaks down what to expect for a finished piece versus doing it yourself. Browse the custom tumblers collection to get started on an order.

FAQ

Can I laser engrave anodized aluminum?

Yes, anodized aluminum can be laser marked or engraved, and the process typically modifies or removes the dyed anodic layer rather than cutting deep into the base metal, according to Trotec. Marking preserves more of the protective oxide, while deeper ablation exposes bare aluminum underneath.

How many watts does a laser need to engrave anodized aluminum?

There’s no single wattage requirement since dye, coating thickness, and alloy all change the result, which is why Trotec recommends testing on scrap from your own material lot rather than copying a published number. Fiber lasers in common desktop and shop ranges can produce strong contrast once power and speed are tuned to the specific anodize.

Can anodized aluminum be etched?

Yes, anodized aluminum can be etched with a laser, and the outcome depends on whether the process stays within the dyed oxide layer or ablates through to bare metal. Epilog recommends a documented test workflow, from inspecting the coating to running a parameter matrix, before moving to production.

What ruins anodized aluminum when engraving it?

Overdriving power or slowing travel speed too far can burn through the dyed oxide and expose bare aluminum where corrosion resistance was the goal. Skipping a test matrix on your actual material lot is the most common cause of inconsistent or ruined marks, since coating thickness and dye chemistry vary between batches.
